Olympus IX71 Linear Encoder Installation

Please excuse the editing. This document is still being drafted.

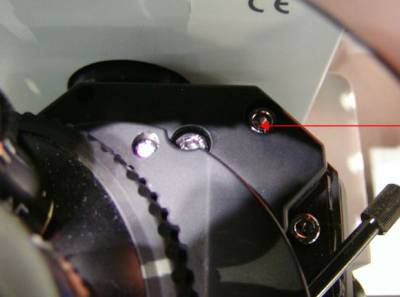

Linear encoder holder mounts via single 5×30 mm screw.
Space encoder to be almost fully depressed when at focal plane. This will allow maximum travel in the reverse direction.
