Zeiss Axiovert Observer stage mounting screw locations

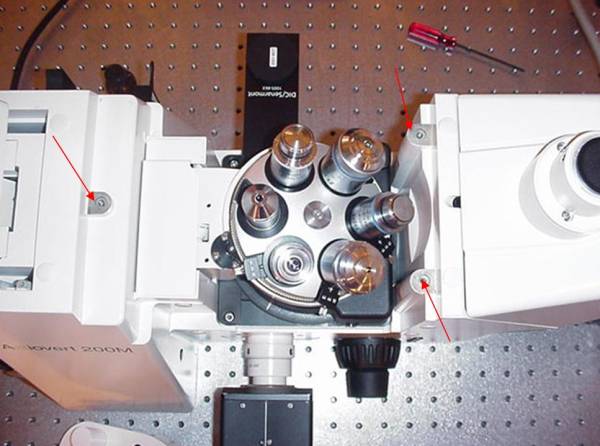

Location of three 4 x 12 mm screws that secure stage to Axiovert /AxioObserver. There are two in the front & one in rear. Use 3mm Allen wrench to remove screws & then remove stage.
